Cutting ring fittings

Banjo couplings

STEV-LR/SR:

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 S3 Material Art.Nr. Stutzen PDF
G1/8 06 315 13 20 30 8 10 16 14 14 1.4571 STEV06L01  XSTEV06L01
G1/4 08 315 14 21 31 10 14 20 17 19 1.4571 STEV08L02  XSTEV08L02
G1/4 10 315 15 22 33 10 14 20 19 19 1.4571 STEV10L02  XSTEV10L02
G3/8 12 315 18 25 36 10 16 25 22 22 1.4571 STEV12L03  XSTEV12L03
G1/2 15 315 21 28 39 12 20 30 27 27 1.4571 STEV15L04  XSTEV15L04
G1/2 18 315 21 28,5 40,5 12 22 30 32 27 1.4571 STEV18L04  XSTEV18L04
G3/4 22 160 27 34,5 46,5 12 24 35 36 32 1.4571 STEV22L06  XSTEV22L06
G1 28 160 31 38,5 52,5 12 30 45 41 41 1.4571 STEV28L08  XSTEV28L08
G1 1/4 35 160 35 45,5 61,5 14 36 55 50 50 1.4571 STEV35L10  XSTEV35L10
G1 1/2 42 160 40 51 67 14 41 65 60 60 1.4571 STEV42L12  XSTEV42L12
G1/4 06 630 16 23 33 10 14 20 17 19 1.4571 STEV06S02  XSTEV06S02
G1/4 08 630 16 23 33 10 14 20 19 19 1.4571 STEV08S02  XSTEV08S02
G3/8 10 630 18 25,5 37,5 10 16 25 22 22 1.4571 STEV10S03  XSTEV10S03
G3/8 12 630 18 25,5 37,5 10 16 25 24 22 1.4571 STEV12S03  XSTEV12S03
G1/2 14 630 22 30 42 12 20 30 27 27 1.4571 STEV14S04  XSTEV14S04
G1/2 16 400 21 29,5 42,5 12 22 30 30 27 1.4571 STEV16S04  XSTEV16S04
G3/4 20 400 26 36,5 51,5 12 24 35 36 32 1.4571 STEV20S06  XSTEV20S06
G1 25 400 31 43 59 12 30 45 46 41 1.4571 STEV25S08  XSTEV25S08
G1 1/4 30 400 36 49,5 65,5 14 36 55 50 50 1.4571 STEV30S10  XSTEV30S10
G1 1/2 38 250 41 57 76 14 41 65 60 60 1.4571 STEV38S12  XSTEV38S12

Related articles

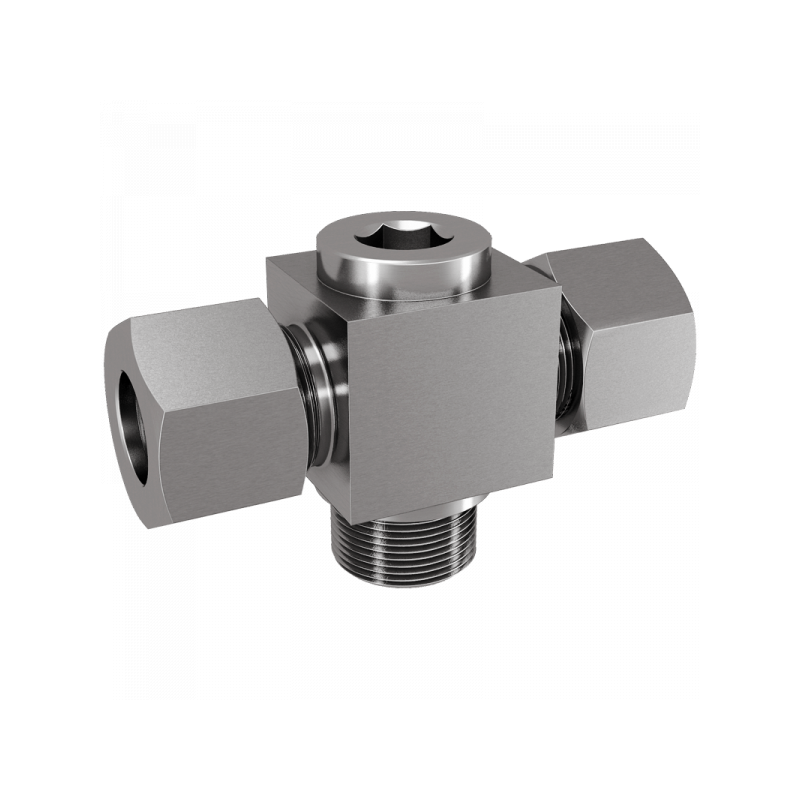

DSVT - LR/SR

DSVT - LR/SR

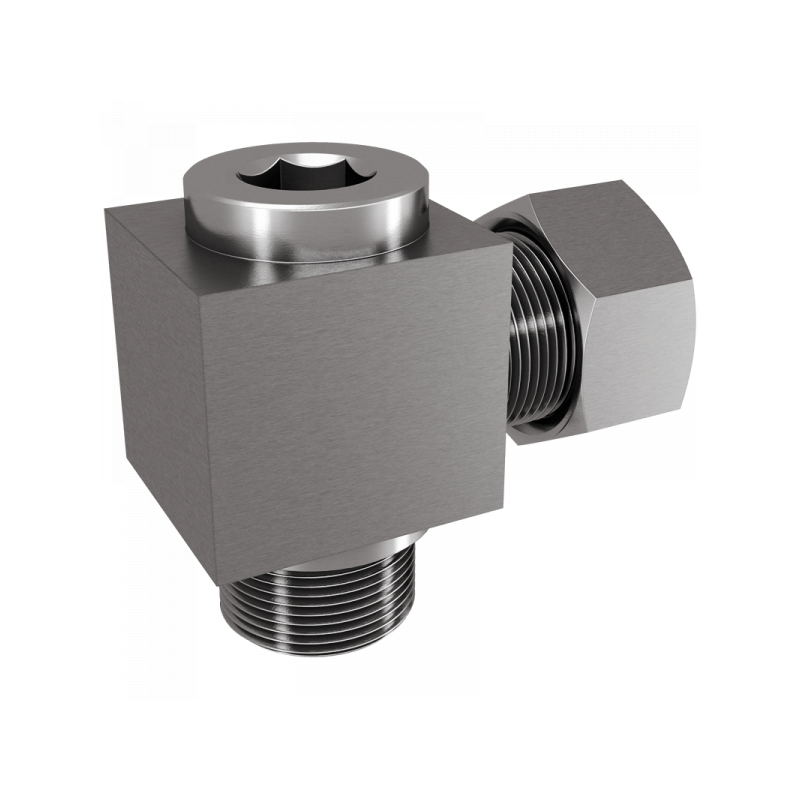

DSVW-LR/SR

DSVW-LR/SR

SWVE-LR/SR

SWVE-LR/SR

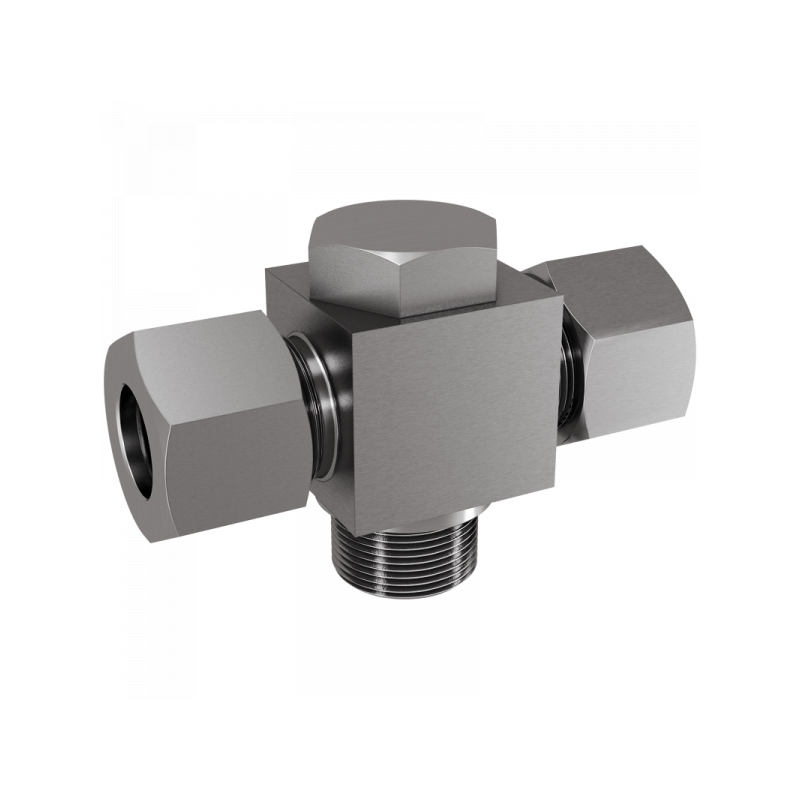

XDSVT - LR/SR
