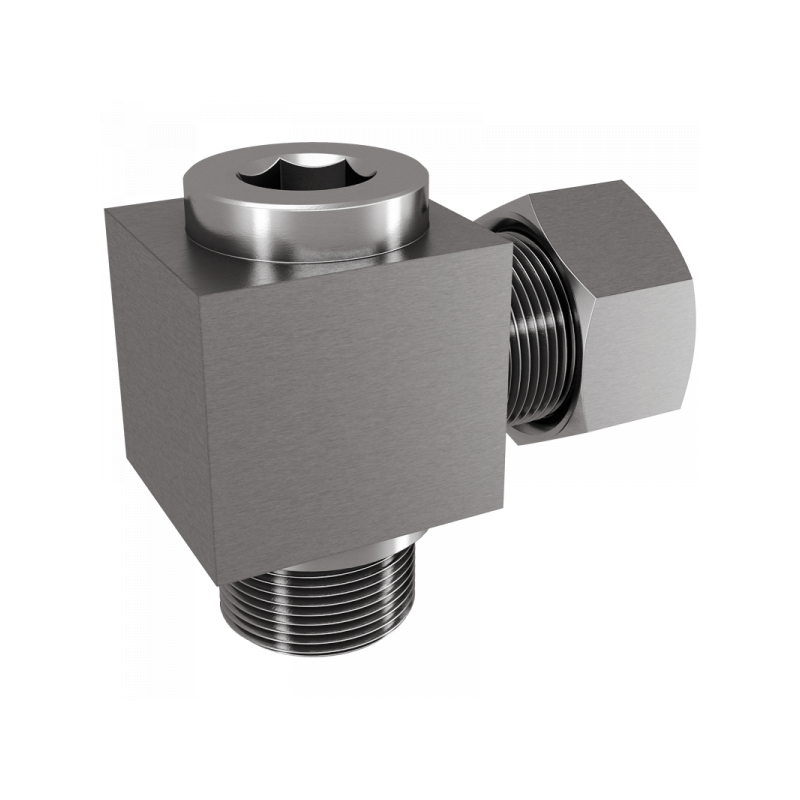

DSVW-LR/SR:

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 S3 Material Art.Nr. Stutzen PDF
G1/8 06 315 13 20 30 8 11 20 14 6 1.4571 DSVW06L01  XDSVW06L01
G1/4 08 315 16 23 33 12 16 25 17 8 1.4571 DSVW08L02  XDSVW08L02
G1/4 10 315 17 24 35 12 16 25 19 8 1.4571 DSVW10L02  XDSVW10L02
G3/8 12 315 19 26 37 12 18 30 22 10 1.4571 DSVW12L03  XDSVW12L03
G1/2 15 315 25 32 43 14 21 35 27 12 1.4571 DSVW15L04  XDSVW15L04
G1/2 18 315 25 32,5 44,5 14 23 35 32 12 1.4571 DSVW18L04  XDSVW18L04
G3/4 22 160 28 35,5 47,5 16 28 45 36 17 1.4571 DSVW22L06  XDSVW22L06
G1 28 160 32 39,5 53,5 18 32 50 41 22 1.4571 DSVW28L08  XDSVW28L08
G1 1/4 35 160 35 45,5 61,5 20 36 60 50 27 1.4571 DSVW35L10  XDSVW35L10
G1 1/2 42 160 40 51 67 22 41 70 60 32 1.4571 DSVW42L12  XDSVW42L12
G1/4 06 630 18 25 35 12 16 25 17 8 1.4571 DSVW06S02  XDSVW06S02
G1/4 08 630 18 25 35 12 16 25 19 8 1.4571 DSVW08S02  XDSVW08S02
G3/8 10 630 20 27,5 39,5 12 18 30 22 10 1.4571 DSVW10S03  XDSVW10S03
G3/8 12 630 20 27,5 39,5 12 18 30 24 10 1.4571 DSVW12S03  XDSVW12S03
G1/2 14 630 24 32 44 14 21 35 27 12 1.4571 DSVW14S04  XDSVW14S04
G1/2 16 400 22 30,5 43,5 14 23 35 30 12 1.4571 DSVW16S04  XDSVW16S04
G3/4 20 400 27 37,5 52,5 16 28 45 36 17 1.4571 DSVW20S06  XDSVW20S06
G1 25 400 31 43 59 18 32 50 46 22 1.4571 DSVW25S08  XDSVW25S08
G1 1/4 30 400 36 49,5 65,5 20 37 60 50 27 1.4571 DSVW30S10  XDSVW30S10
G1 1/2 38 250 41 57 76 22 42 70 60 32 1.4571 DSVW38S12  XDSVW38S12
