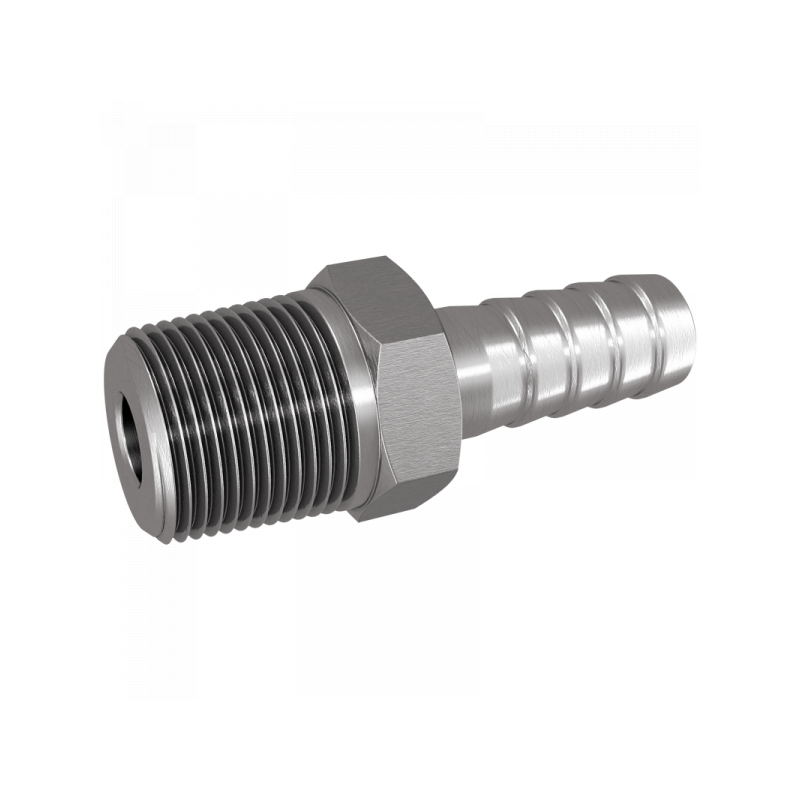

Fig. 5851:

A B / mm L1 / mm S1 Material Art.Nr. PDF
1/4NPT 6 46 14 1.4571 585102063
1/4NPT 8 46 14 1.4571 585102083
1/4NPT 10 46 14 1.4571 585102103
1/4NPT 11 50 14 1.4571 585102113
3/8NPT 11 50 17 1.4571 585103113
3/8NPT 13 50 17 1.4571 585103133
1/2NPT 6 58 22 1.4571 585104063
1/2NPT 11 58 22 1.4571 585104113
1/2NPT 13 58 22 1.4571 585104133
1/2NPT 15 58 22 1.4571 585104153
1/2NPT 19 58 22 1.4571 585104193
3/4NPT 13 62 27 1.4571 585106133
3/4NPT 16 62 27 1.4571 585106163
3/4NPT 19 62 27 1.4571 585106193
3/4NPT 25 62 27 1.4571 585106253
1NPT 25 70 36 1.4571 585108253
1NPT 32 70 36 1.4571 585108323
1 1/4NPT 32 80 46 1.4571 585110323
1 1/4NPT 40 80 46 1.4571 585110403
2NPT 50 85 65 1.4571 585116503
