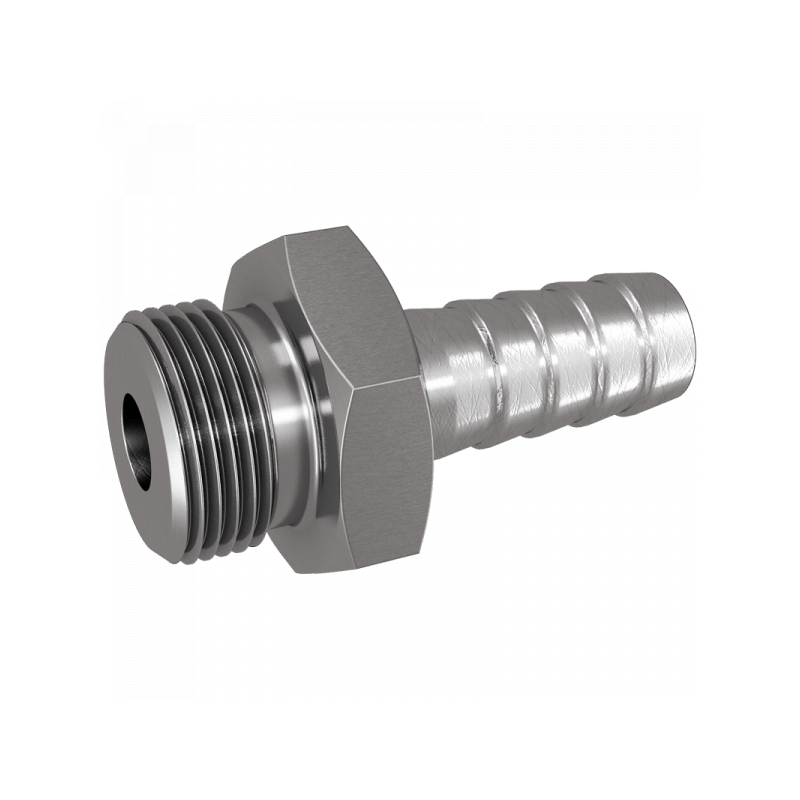

Fig. 5850:

A B / mm L1 / mm S1 Material Art.Nr. PDF
G1/8 4 32 12 1.4571 585001043
G1/8 6 36 14 1.4571 585001063
G1/8 9 40 14 1.4571 585001093
G1/8 10 40 14 1.4571 585001103
G1/8 11 40 14 1.4571 585001113
G1/4 4 35 17 1.4571 585002043
G1/4 6 40 17 1.4571 585002063
G1/4 9 40 17 1.4571 585002093
G1/4 10 40 17 1.4571 585002103
G1/4 11 45 17 1.4571 585002113
G1/4 13 45 17 1.4571 585002133
G3/8 6 40 22 1.4571 585003063
G3/8 8 45 22 1.4571 585003083
G3/8 9 45 22 1.4571 585003093
G3/8 10 45 22 1.4571 585003103
G3/8 11 45 22 1.4571 585003113
G3/8 13 45 22 1.4571 585003133
G3/8 15 45 22 1.4571 585003153
G3/8 16 45 22 1.4571 585003163
G3/8 19 48 22 1.4571 585003193
G1/2 6 45 27 1.4571 585004063
G1/2 7 45 27 1.4571 585004073
G1/2 8 45 27 1.4571 585004083
G1/2 9 45 27 1.4571 585004093
G1/2 10 45 27 1.4571 585004103
G1/2 11 50 27 1.4571 585004113
G1/2 13 50 27 1.4571 585004133
G1/2 15 50 27 1.4571 585004153
G1/2 16 50 27 1.4571 585004163
G1/2 19 50 27 1.4571 585004193
G1/2 25 50 27 1.4571 585004253
G3/4 9 50 32 1.4571 585006093
G3/4 13 55 32 1.4571 585006133
G3/4 16 55 32 1.4571 585006163
G3/4 19 55 32 1.4571 585006193
G3/4 25 55 32 1.4571 585006253
G1 13 60 36 1.4571 585008133
G1 16 60 36 1.4571 585008163
G1 19 60 36 1.4571 585008193
G1 25 60 36 1.4571 585008253
G1 32 60 36 1.4571 585008323
G1 1/4 19 75 46 1.4571 585010193
G1 1/4 25 75 46 1.4571 585010253
G1 1/4 30 75 46 1.4571 585010303
G1 1/4 32 75 46 1.4571 585010323
G1 1/4 38 75 46 1.4571 585010383
G1 1/4 40 75 46 1.4571 585010403
G1 1/2 25 80 55 1.4571 585012253
G1 1/2 32 80 55 1.4571 585012323
G1 1/2 38 80 55 1.4571 585012383
G1 1/2 40 80 55 1.4571 585012403
G1 1/2 50 80 55 1.4571 585012503
G2 40 85 65 1.4571 585016403
G2 50 85 65 1.4571 585016503
G2 60 85 65 1.4571 585016603
