Cutting ring fittings

Accessories for couplings

SKAR-S:

A B C PN / Bar L1 / mm Material Art.Nr. PDF
14 08 1,5 424 38,5 1.4571 SKAR14/08S
14 08 1,5 424 38,5 1.4571 SKAR14/08S
14 10 1,5 349 38,5 1.4571 SKAR14/10S
14 10 1,5 349 38,5 1.4571 SKAR14/10S
14 12 2,0 383 38,5 1.4571 SKAR14/12S
14 12 2,0 383 38,5 1.4571 SKAR14/12S
16 08 1,5 400 39 1.4571 SKAR16/08S
16 08 1,5 400 39 1.4571 SKAR16/08S
16 10 1,5 349 39 1.4571 SKAR16/10S
16 10 1,5 349 39 1.4571 SKAR16/10S
16 12 2,0 383 39 1.4571 SKAR16/12S
16 12 2,0 383 39 1.4571 SKAR16/12S
16 14 2,0 400 39 1.4571 SKAR16/14S
16 14 2,0 400 39 1.4571 SKAR16/14S
20 08 1,5 400 45 1.4571 SKAR20/08S
20 08 1,5 400 45 1.4571 SKAR20/08S
20 10 1,5 349 45 1.4571 SKAR20/10S
20 10 1,5 349 45 1.4571 SKAR20/10S
20 12 2,0 383 45 1.4571 SKAR20/12S
20 12 2,0 383 45 1.4571 SKAR20/12S
20 14 2,0 400 45 1.4571 SKAR20/14S
20 14 2,0 400 45 1.4571 SKAR20/14S
20 16 2,0 297 45 1.4571 SKAR20/16S
20 16 2,0 297 45 1.4571 SKAR20/16S
25 12 2,0 383 49,5 1.4571 SKAR25/12S
25 12 2,0 383 49,5 1.4571 SKAR25/12S
25 14 2,0 400 49,5 1.4571 SKAR25/14S
25 14 2,0 400 49,5 1.4571 SKAR25/14S
25 16 2,0 297 49,5 1.4571 SKAR25/16S
25 16 2,0 297 49,5 1.4571 SKAR25/16S
25 20 2,0 242 49,5 1.4571 SKAR25/20S
25 20 2,0 242 49,5 1.4571 SKAR25/20S
30 12 2,0 383 52 1.4571 SKAR30/12S
30 12 2,0 383 52 1.4571 SKAR30/12S
30 14 2,0 400 52 1.4571 SKAR30/14S
30 14 2,0 400 52 1.4571 SKAR30/14S
30 16 2,0 297 52 1.4571 SKAR30/16S
30 16 2,0 297 52 1.4571 SKAR30/16S
30 20 2,0 242 52 1.4571 SKAR30/20S
30 20 2,0 242 52 1.4571 SKAR30/20S
30 25 2,5 242 52 1.4571 SKAR30/25S
30 25 2,5 242 52 1.4571 SKAR30/25S
38 16 2,0 250 56,5 1.4571 SKAR38/16S
38 16 2,0 250 56,5 1.4571 SKAR38/16S
38 20 2,0 242 56,5 1.4571 SKAR38/20S
38 20 2,0 242 56,5 1.4571 SKAR38/20S
38 25 2,5 242 56,5 1.4571 SKAR38/25S
38 25 2,5 242 56,5 1.4571 SKAR38/25S
38 30 2,5 233 56,5 1.4571 SKAR38/30S
38 30 2,5 233 56,5 1.4571 SKAR38/30S

Related articles

VSTI

VSTI

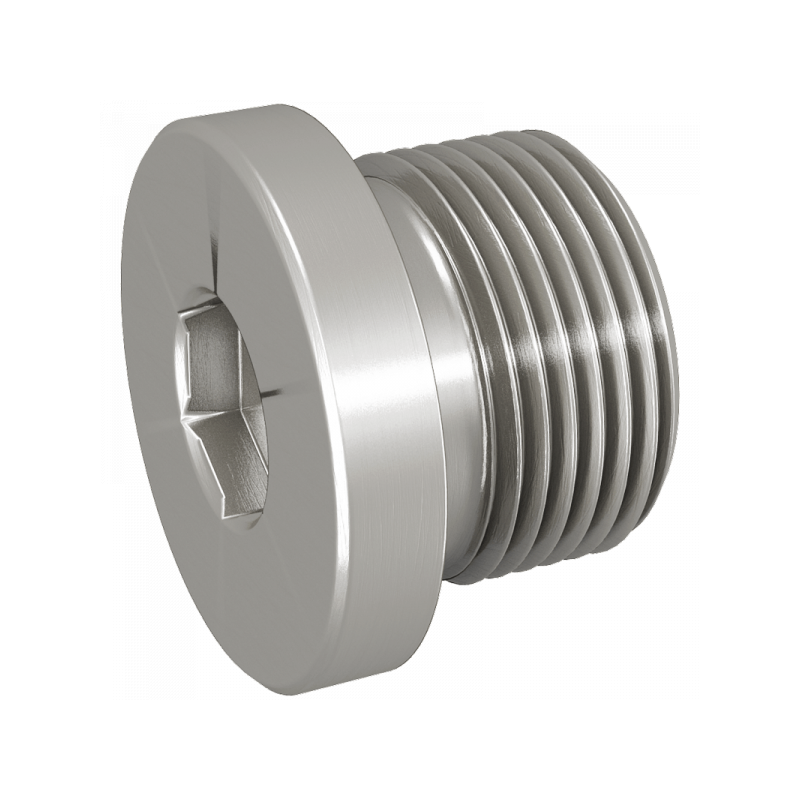

VSTI-ED

VSTI-ED

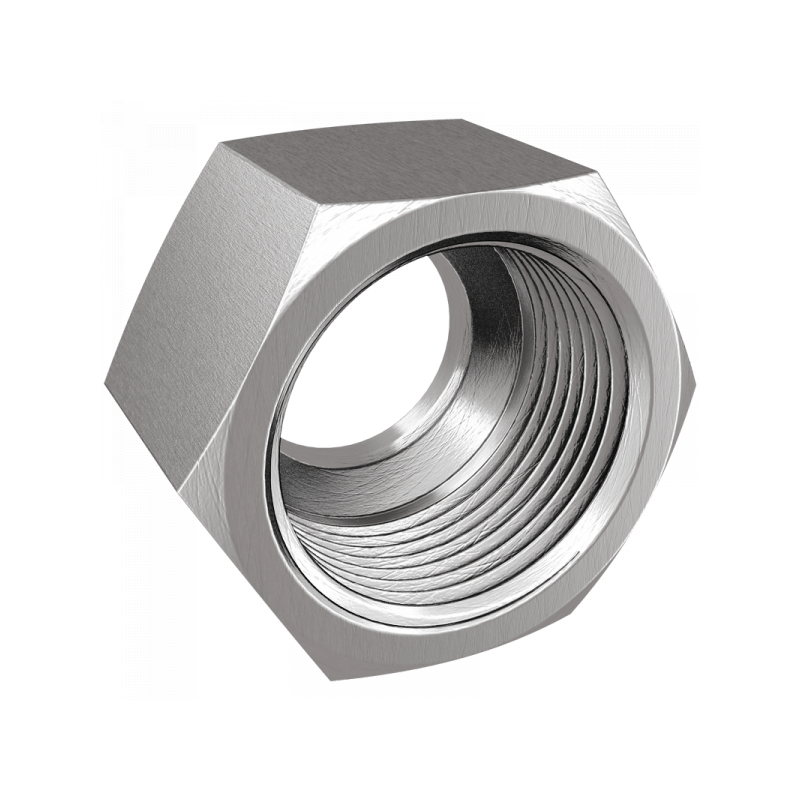

M-L/S
