Cutting ring fittings

Accessories for couplings

SKA-L/S:

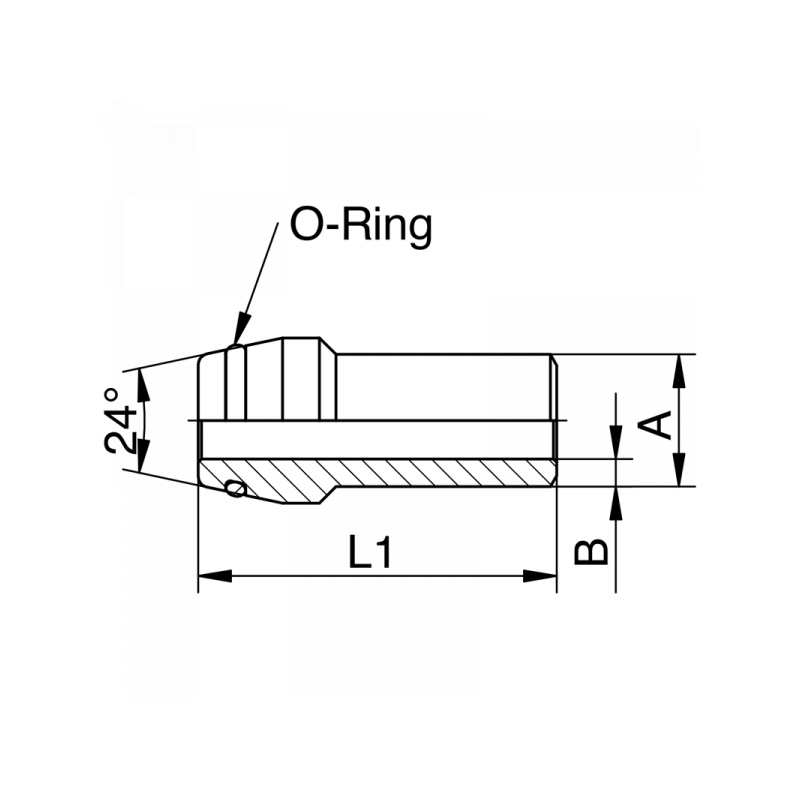

A B PN / Bar L1 / mm Material Art.Nr. PDF
15 1,5 280 34 1.4571 SKA15X1.5
15 1,5 280 34 1.4571 SKA15X1.5
15 2,0 315 34 1.4571 SKA15X2
15 2,0 315 34 1.4571 SKA15X2
18 1,5 230 35,5 1.4571 SKA18X1.5
18 1,5 230 35,5 1.4571 SKA18X1.5
18 2,0 315 35,5 1.4571 SKA18X2
18 2,0 315 35,5 1.4571 SKA18X2
22 2,0 160 38,5 1.4571 SKA22X2
22 2,0 160 38,5 1.4571 SKA22X2
22 2,5 160 38,5 1.4571 SKA22X2.5
22 2,5 160 38,5 1.4571 SKA22X2.5
22 3,0 160 38,5 1.4571 SKA22X3
22 3,0 160 38,5 1.4571 SKA22X3
28 2,0 160 41,5 1.4571 SKA28X2
28 2,0 160 41,5 1.4571 SKA28X2
28 2,5 160 41,5 1.4571 SKA28X2.5
28 2,5 160 41,5 1.4571 SKA28X2.5
28 3,0 160 41,5 1.4571 SKA28X3
28 3,0 160 41,5 1.4571 SKA28X3
35 3,0 160 47,5 1.4571 SKA35X3
35 3,0 160 47,5 1.4571 SKA35X3
35 3,5 160 47,5 1.4571 SKA35X3.5
35 3,5 160 47,5 1.4571 SKA35X3.5
42 3,0 160 47,5 1.4571 SKA42X3
42 3,0 160 47,5 1.4571 SKA42X3
42 4,0 160 47,5 1.4571 SKA42X4
42 4,0 160 47,5 1.4571 SKA42X4
06 1,0 466 31 1.4571 SKA06X1
06 1,0 466 31 1.4571 SKA06X1
06 1,5 539 31 1.4571 SKA06X1.5
06 1,5 539 31 1.4571 SKA06X1.5
08 1,0 350 31 1.4571 SKA08X1
08 1,0 350 31 1.4571 SKA08X1
08 1,5 424 31 1.4571 SKA08X1.5
08 1,5 424 31 1.4571 SKA08X1.5
08 2,0 539 31 1.4571 SKA08X2
08 2,0 539 31 1.4571 SKA08X2
10 1,0 242 32,5 1.4571 SKA10X1
10 1,0 242 32,5 1.4571 SKA10X1
10 1,5 349 32,5 1.4571 SKA10X1.5
10 1,5 349 32,5 1.4571 SKA10X1.5
10 2,0 447 32,5 1.4571 SKA10X2
10 2,0 447 32,5 1.4571 SKA10X2
12 1,5 297 32,5 1.4571 SKA12X1.5
12 1,5 297 32,5 1.4571 SKA12X1.5
12 2,0 383 32,5 1.4571 SKA12X2
12 2,0 383 32,5 1.4571 SKA12X2
12 2,5 463 32,5 1.4571 SKA12X2.5
12 2,5 463 32,5 1.4571 SKA12X2.5
14 2,0 334 38,5 1.4571 SKA14X2
14 2,0 334 38,5 1.4571 SKA14X2
16 2,0 297 39 1.4571 SKA16X2
16 2,0 297 39 1.4571 SKA16X2
16 2,5 362 39 1.4571 SKA16X2.5
16 2,5 362 39 1.4571 SKA16X2.5
16 3,0 400 39 1.4571 SKA16X3
16 3,0 400 39 1.4571 SKA16X3
20 2,0 242 45 1.4571 SKA20X2
20 2,0 242 45 1.4571 SKA20X2
20 2,5 297 45 1.4571 SKA20X2.5
20 2,5 297 45 1.4571 SKA20X2.5
20 3,0 349 45 1.4571 SKA20X3
20 3,0 349 45 1.4571 SKA20X3
20 4,0 400 45 1.4571 SKA20X4
20 4,0 400 45 1.4571 SKA20X4
25 3,0 286 49,5 1.4571 SKA25X3
25 3,0 286 49,5 1.4571 SKA25X3
25 3,5 328 49,5 1.4571 SKA25X3.5
25 3,5 328 49,5 1.4571 SKA25X3.5
25 4,0 369 49,5 1.4571 SKA25X4
25 4,0 369 49,5 1.4571 SKA25X4
25 5,0 400 49,5 1.4571 SKA25X5
25 5,0 400 49,5 1.4571 SKA25X5
30 3,0 242 52 1.4571 SKA30X3
30 3,0 242 52 1.4571 SKA30X3
30 4,0 314 52 1.4571 SKA30X4
30 4,0 314 52 1.4571 SKA30X4
30 5,0 383 52 1.4571 SKA30X5
30 5,0 383 52 1.4571 SKA30X5
38 4,0 250 56,5 1.4571 SKA38X4
38 4,0 250 56,5 1.4571 SKA38X4
38 5,0 250 56,5 1.4571 SKA38X5
38 5,0 250 56,5 1.4571 SKA38X5
38 6,0 250 56,5 1.4571 SKA38X6
38 6,0 250 56,5 1.4571 SKA38X6

Related articles

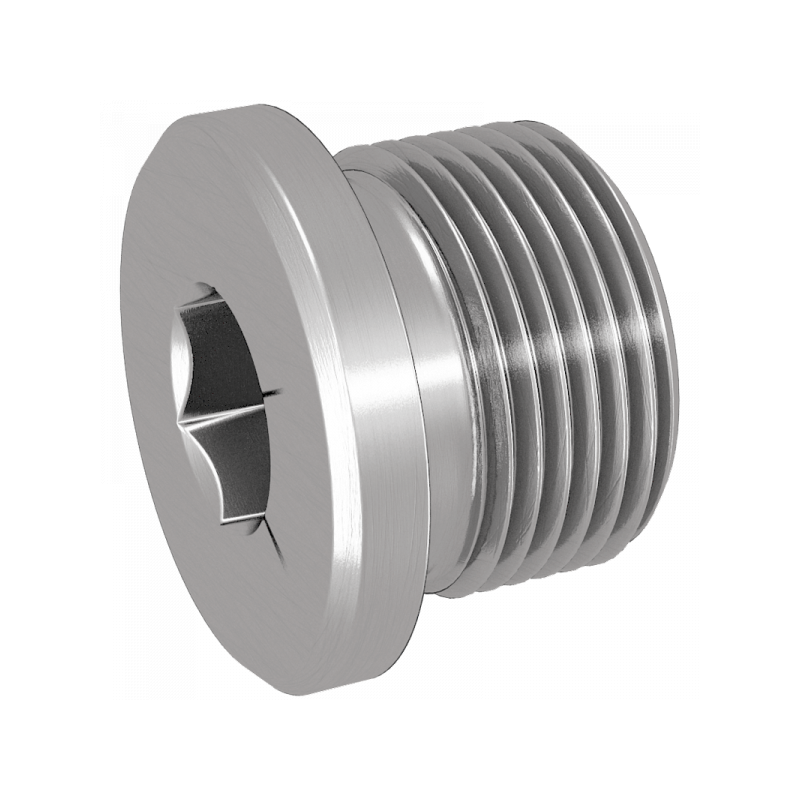

VSTI

VSTI

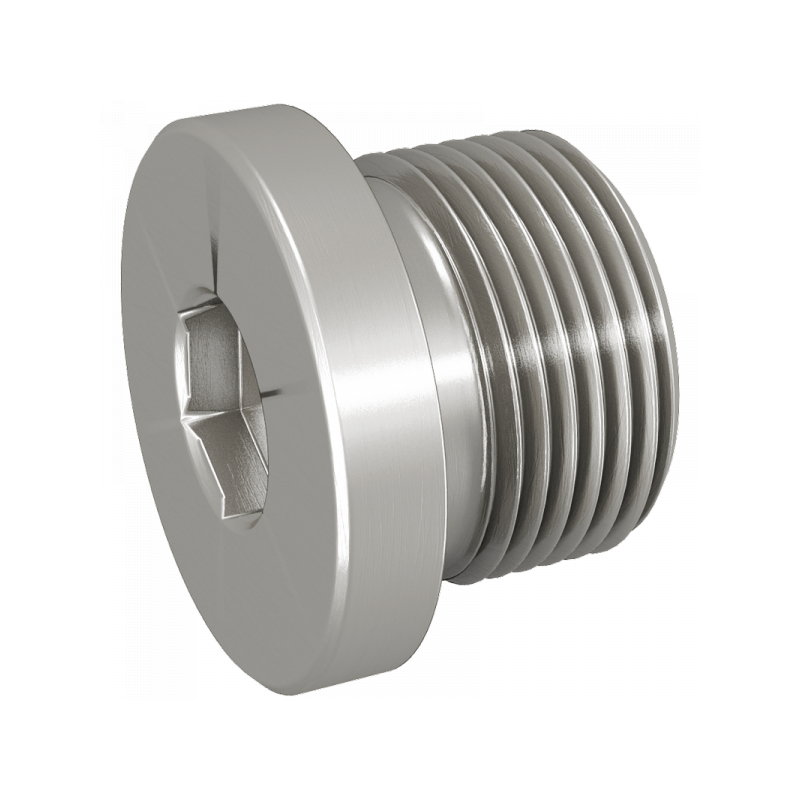

VSTI-ED

VSTI-ED

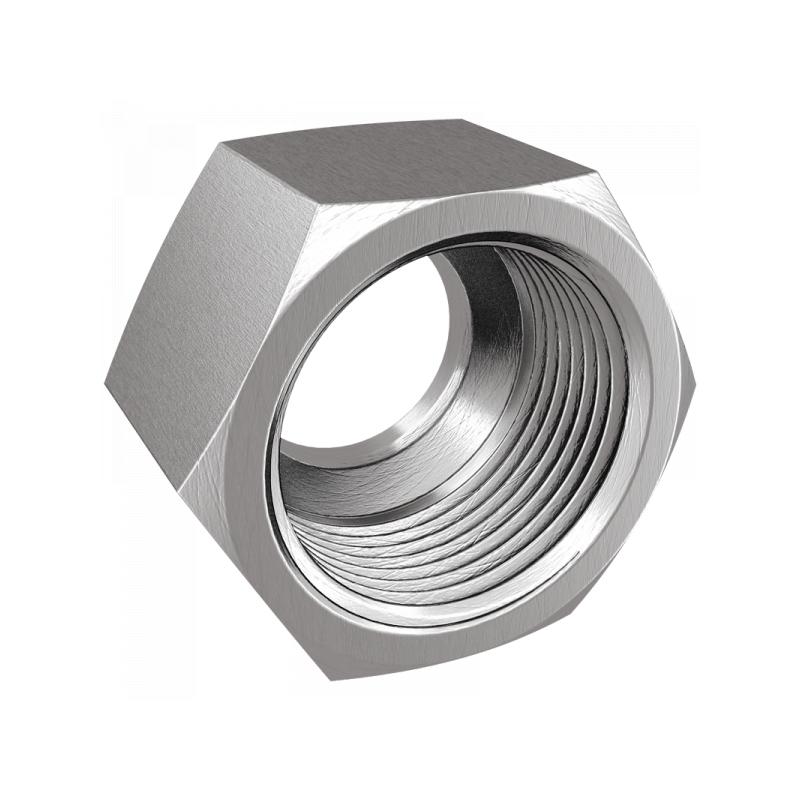

M-L/S

M-L/S

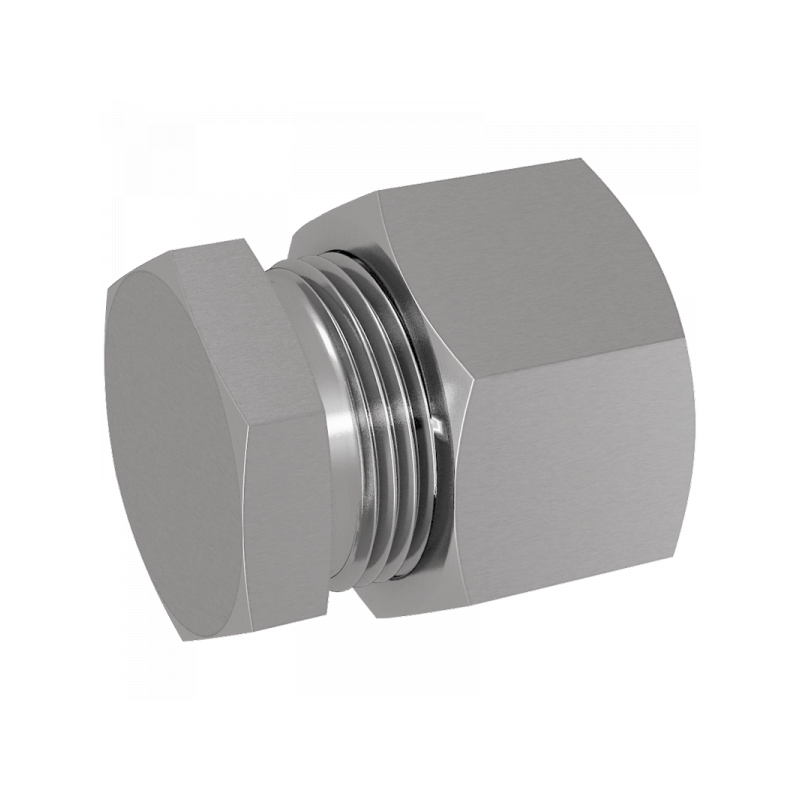

ROV-L/S
