Cutting ring fittings

Accessories for couplings

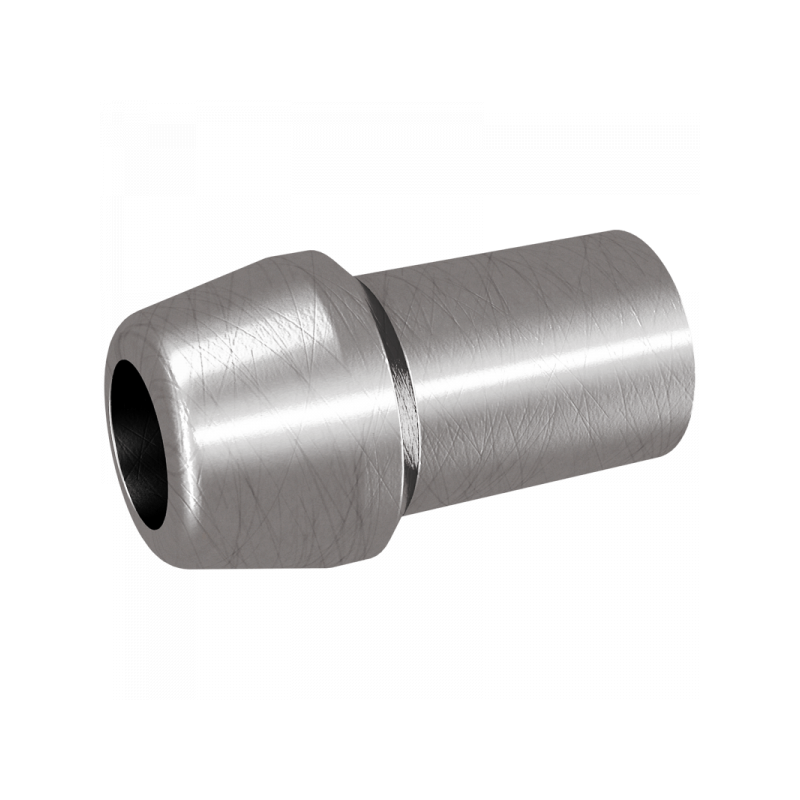

SKM-L/S:

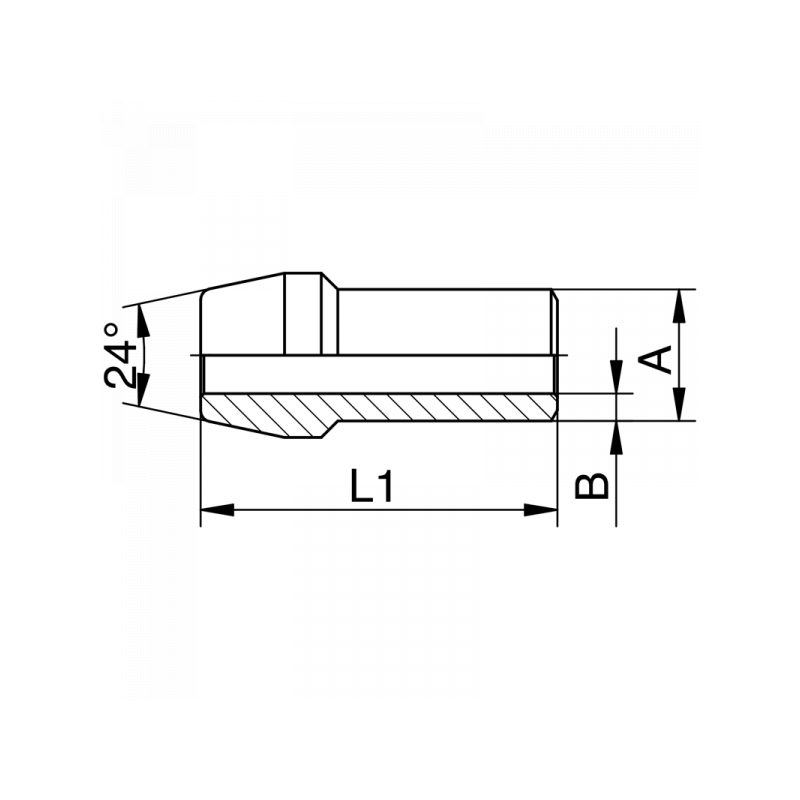

A B PN / Bar L1 / mm Material Art.Nr. PDF
15 1,5 280 34 1.4571 SKM15X1.5
15 1,5 280 34 1.4571 SKM15X1.5
15 2,0 315 34 1.4571 SKM15X2.0
15 2,0 315 34 1.4571 SKM15X2.0
18 1,5 230 35,5 1.4571 SKM18X1.5
18 1,5 230 35,5 1.4571 SKM18X1.5
18 2,0 315 35,5 1.4571 SKM18X2
18 2,0 315 35,5 1.4571 SKM18X2
22 2,0 160 38,5 1.4571 SKM22X2
22 2,0 160 38,5 1.4571 SKM22X2
22 2,5 160 38,5 1.4571 SKM22X2.5
22 2,5 160 38,5 1.4571 SKM22X2.5
28 2,5 160 41,5 1.4571 SKM28X2.5
28 2,5 160 41,5 1.4571 SKM28X2.5
28 3,0 160 41,5 1.4571 SKM28X3
28 3,0 160 41,5 1.4571 SKM28X3
28 3,5 160 41,5 1.4571 SKM28X3.5
28 3,5 160 41,5 1.4571 SKM28X3.5
35 3,0 160 47,5 1.4571 SKM35X3
35 3,0 160 47,5 1.4571 SKM35X3
35 3,5 160 47,5 1.4571 SKM35X3.5
35 3,5 160 47,5 1.4571 SKM35X3.5
35 4,0 160 47,5 1.4571 SKM35X4
35 4,0 160 47,5 1.4571 SKM35X4
42 3,0 160 47,5 1.4571 SKM42X3.0
42 3,0 160 47,5 1.4571 SKM42X3.0
42 4,0 160 47,5 1.4571 SKM42X4.0
42 4,0 160 47,5 1.4571 SKM42X4.0
06 1,0 466 31 1.4571 SKM06X1.0
06 1,0 466 31 1.4571 SKM06X1.0
06 1,5 539 31 1.4571 SKM06X1.5
06 1,5 539 31 1.4571 SKM06X1.5
08 1,0 350 31 1.4571 SKM08X1.0
08 1,0 350 31 1.4571 SKM08X1.0
08 1,5 424 31 1.4571 SKM08X1.5
08 1,5 424 31 1.4571 SKM08X1.5
08 2,0 539 31 1.4571 SKM08X2
08 2,0 539 31 1.4571 SKM08X2
10 1,0 242 32,5 1.4571 SKM10X1.0
10 1,0 242 32,5 1.4571 SKM10X1.0
10 1,5 349 32,5 1.4571 SKM10X1.5
10 1,5 349 32,5 1.4571 SKM10X1.5
10 2,0 447 32,5 1.4571 SKM10X2
10 2,0 447 32,5 1.4571 SKM10X2
12 1,5 297 32,5 1.4571 SKM12X1.5
12 1,5 297 32,5 1.4571 SKM12X1.5
12 2,0 383 32,5 1.4571 SKM12X2
12 2,0 383 32,5 1.4571 SKM12X2
12 2,5 463 32,5 1.4571 SKM12X2.5
12 2,5 463 32,5 1.4571 SKM12X2.5
14 2,0 334 38,5 1.4571 SKM14X2
14 2,0 334 38,5 1.4571 SKM14X2
16 2,0 297 39 1.4571 SKM16X2
16 2,0 297 39 1.4571 SKM16X2
16 2,5 362 39 1.4571 SKM16X2.5
16 2,5 362 39 1.4571 SKM16X2.5
16 3,0 400 39 1.4571 SKM16X3
16 3,0 400 39 1.4571 SKM16X3
20 2,0 242 45 1.4571 SKM20X2
20 2,0 242 45 1.4571 SKM20X2
20 2,5 297 45 1.4571 SKM20X2.5
20 2,5 297 45 1.4571 SKM20X2.5
20 3,0 349 45 1.4571 SKM20X3
20 3,0 349 45 1.4571 SKM20X3
20 4,0 400 45 1.4571 SKM20X4
20 4,0 400 45 1.4571 SKM20X4
25 3,0 286 49,5 1.4571 SKM25X3
25 3,0 286 49,5 1.4571 SKM25X3
25 3,5 328 49,5 1.4571 SKM25X3.5
25 3,5 328 49,5 1.4571 SKM25X3.5
25 4,0 369 49,5 1.4571 SKM25X4
25 4,0 369 49,5 1.4571 SKM25X4
30 3,0 242 52 1.4571 SKM30X3
30 3,0 242 52 1.4571 SKM30X3
30 4,0 314 52 1.4571 SKM30X4
30 4,0 314 52 1.4571 SKM30X4
30 6,0 400 52 1.4571 SKM30X6
30 6,0 400 52 1.4571 SKM30X6
38 4,0 250 56,5 1.4571 SKM38X4
38 4,0 250 56,5 1.4571 SKM38X4
38 5,0 250 56,5 1.4571 SKM38X5
38 5,0 250 56,5 1.4571 SKM38X5

Related articles

VSTI

VSTI

VSTI-ED

VSTI-ED

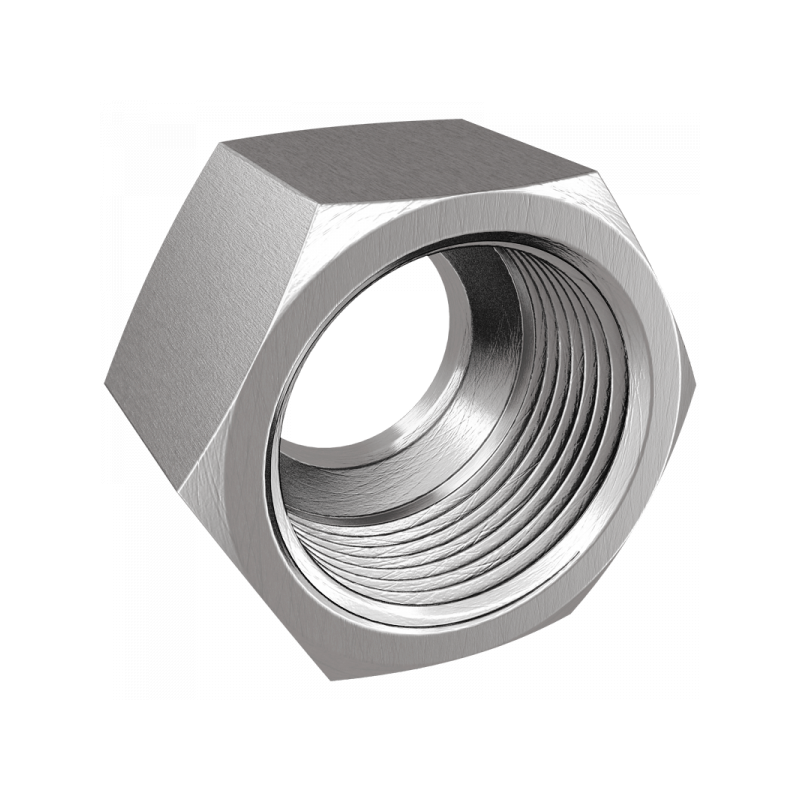

M-L/S
